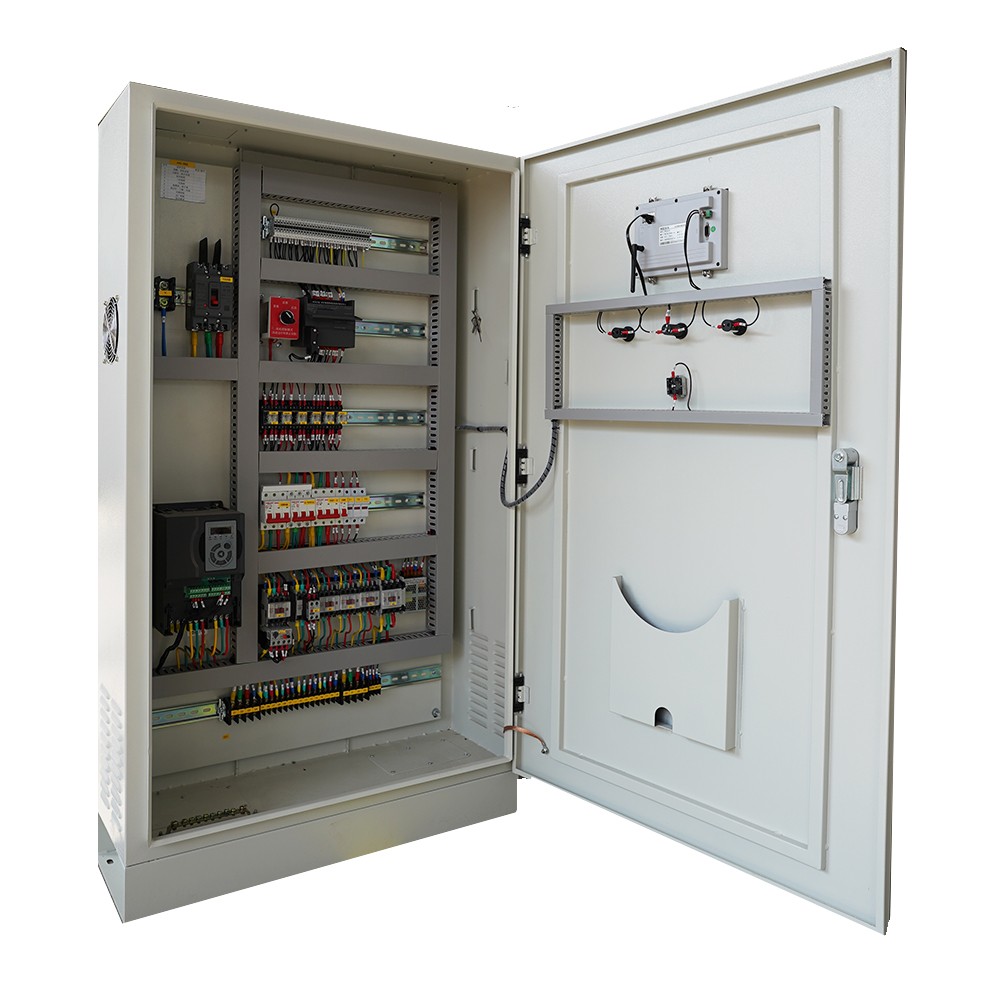

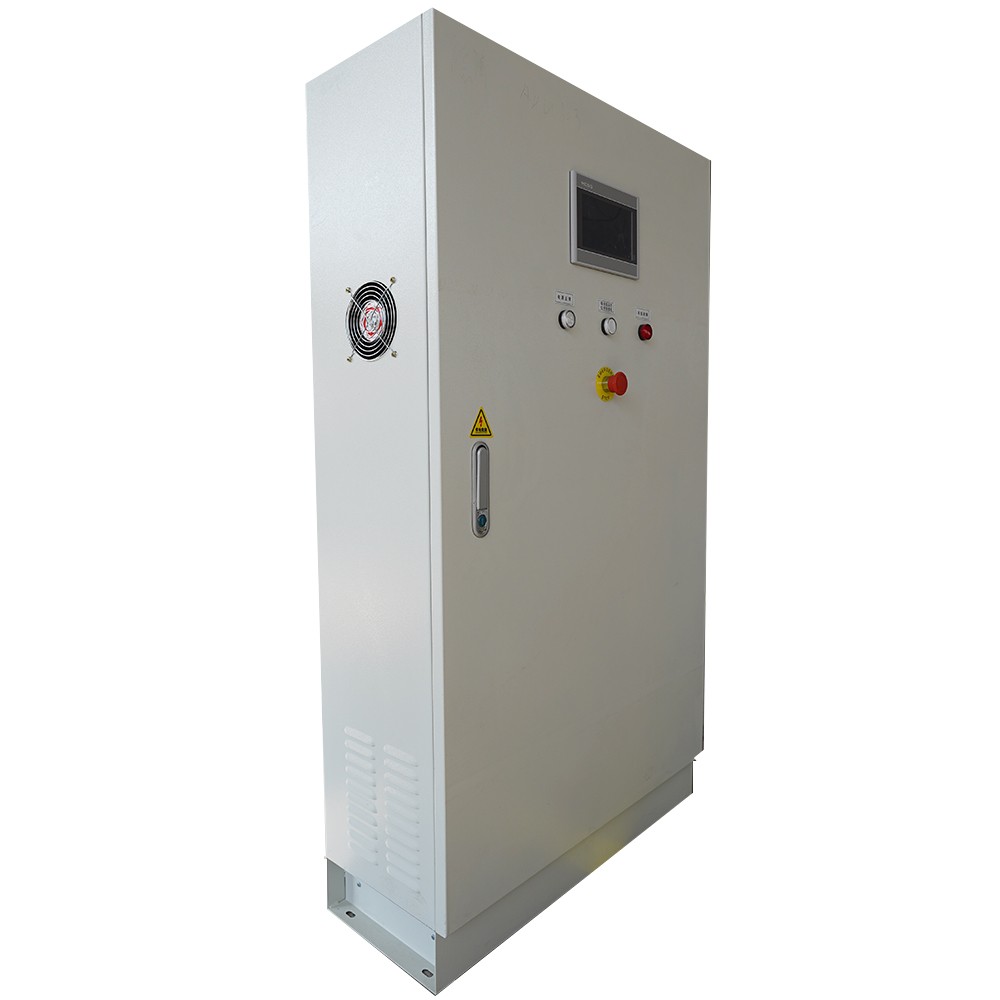

Home Products Control Cabinet OEM Sheet Metal Control Power Cabinet
Working Condition:
Ambient temperature:-10-50ºC
Control mode:Outlet constant pressure
Pressure adjustment precision:<±0.01MPa
Installation mode:Floor type or hanging type
Power:0.75kW~400Kw
Phase:1PH/3PH 220V 50/60Hz;3PH AC380V 50/60Hz
Voltage:220V:170~220V;380V: 330V-440V
Application Range :
Water supply for Urban and rural residential area, high-rise buildings water supply, hotels, restaurants and large-sized structures and fire fighting water;
Water pumping stations, pipeline system;
Industrial production and industrial boiler water supply system;
Sewage treatment system;
Transformation for old water supply system(High level of pressure water tower, or water supply in water tank) ;
Agricultural irrigation, sprinkler irrigation and music fountain.
Product Parameters:
Control Panel Cabinet Technical parameter
VFD Power
0.75kW~900Kw
Input rated voltage and frequency
1PH/3PH 220V 50/60Hz;3PH AC380V 50/60Hz
Allowable voltage range
220V:170~220V;380V: 330V-440V
Output voltage
220V:0~220V;380V: 330V-440V
Analog input signal
In: 0~10v; 0~20mA
Analog output signal
0/4-20 mA
Output frequency / accuracy
0.1~400.0 Hz / 0.1Hz
Color
OEM colors are available
Function
Waterproof,dustproof,fireproof,UV protection
Type
Explosion-proof type, Double doors are available
Protection mechanism
Overload protection, over-voltage protection can be set, under voltage protection can be set, short circuit protection, over-current protection, parameter locking
Application
Industry Machinery
